Reception Desk Solid Surface Countertop and Millwork Section

Materials

Steel Stainless Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Stairs Floors / Slabs Millwork / Casework Reinforcing

About this detail

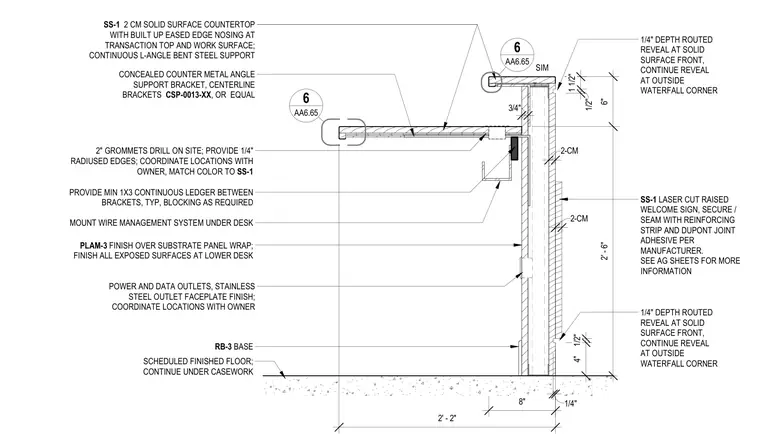

This interior millwork detail shows a reception desk assembly featuring a 2-centimeter solid surface transaction top and work surface with a built-up eased edge nosing. The countertops are supported by concealed metal angle support brackets, model CSP-0013-XX or equal, backed by a minimum 1x3 continuous wood ledger and additional blocking as required. A continuous L-angle bent steel support is located beneath the work surface, alongside an under-desk wire management system and field-drilled 2-inch grommets with radiused edges. The vertical desk front is finished with PLAM-3 laminate over a substrate panel wrap, featuring 1/4-inch deep routed reveals at the solid surface front and outside waterfall corners. A laser-cut raised welcome sign in solid surface material is secured and seamed with a reinforcing strip and DuPont joint adhesive. Power and data outlets with stainless steel faceplates are integrated into the desk front, which terminates at the scheduled finished floor with an RB-3 base.
