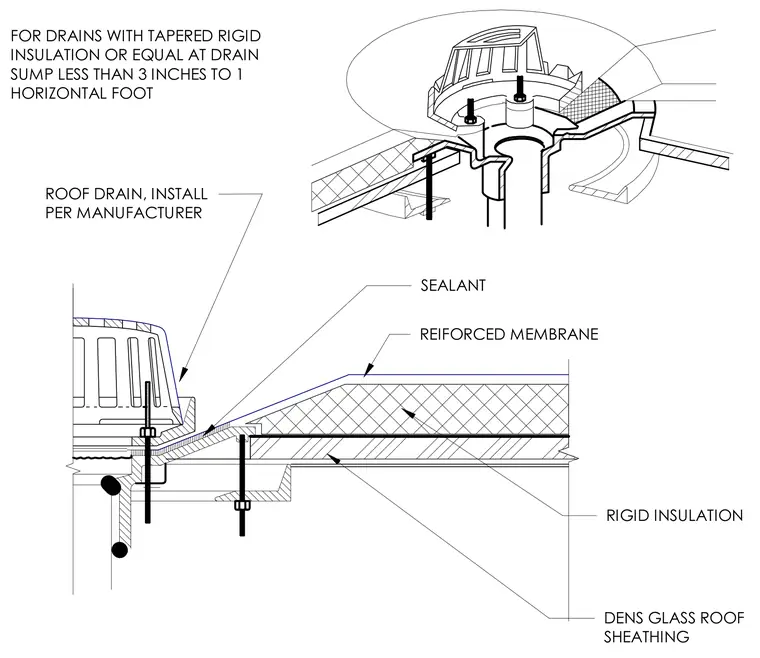

The roof drain assembly is installed over dens glass roof sheathing with tapered rigid insulation or equal at the drain sump maintaining a slope of less than three inches to one horizontal foot. A reinforced membrane waterproofing layer extends over the rigid insulation and terminates at the drain body. Sealant is applied at the drain flange connection per the manufacturer instructions.
DENS GLASS ROOF SHEATHING FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REIFORCED MEMBRANE RIGID INSULATION t . S I No N W 9777777
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
