Architectural · A-BPTGB

Window Jambs at ACM Panels

Materials

Elements

Walls Windows Facades / Cladding Roofs Canopies Drainage Roof / Floor Openings

About this detail

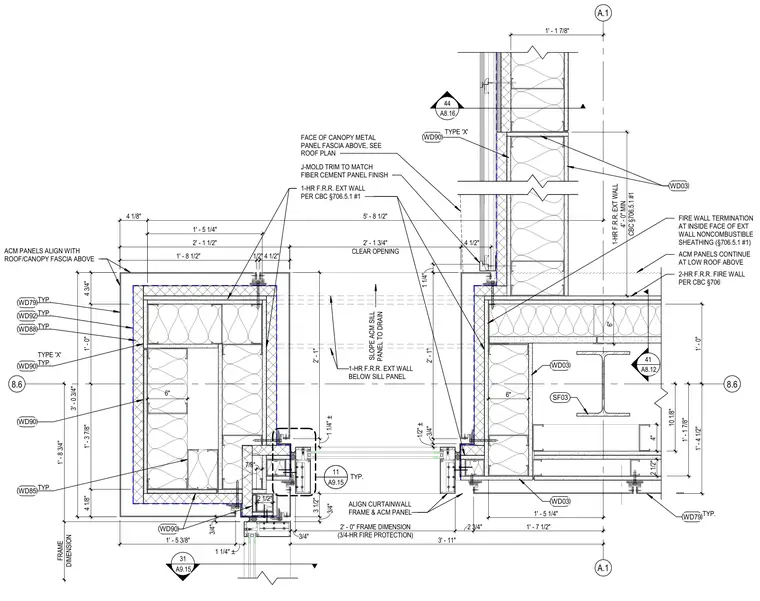

Window jamb assemblies intersect aluminum composite material panels, exterior wall framing, and rated fire assemblies. The construction incorporates Type X gypsum board, J-mold trim matching the fiber cement finish, and steel framing components. Fire-rated wall terminations comply with California Building Code section 706 standards, aligning curtain wall frames with ACM panels and sloping sill panels to drain.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
