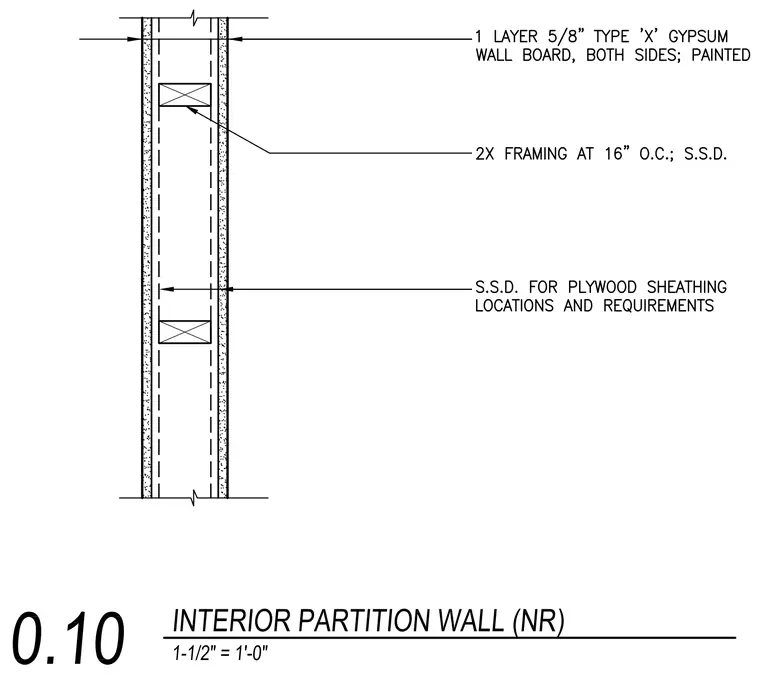

This interior partition wall assembly consists of two-by framing spaced at sixteen inches on center, sized per structural drawings. Each side of the partition is finished with one layer of five-eighths-inch Type X gypsum wall board, painted. Plywood sheathing locations and requirements are also sized per structural drawings where specified.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
