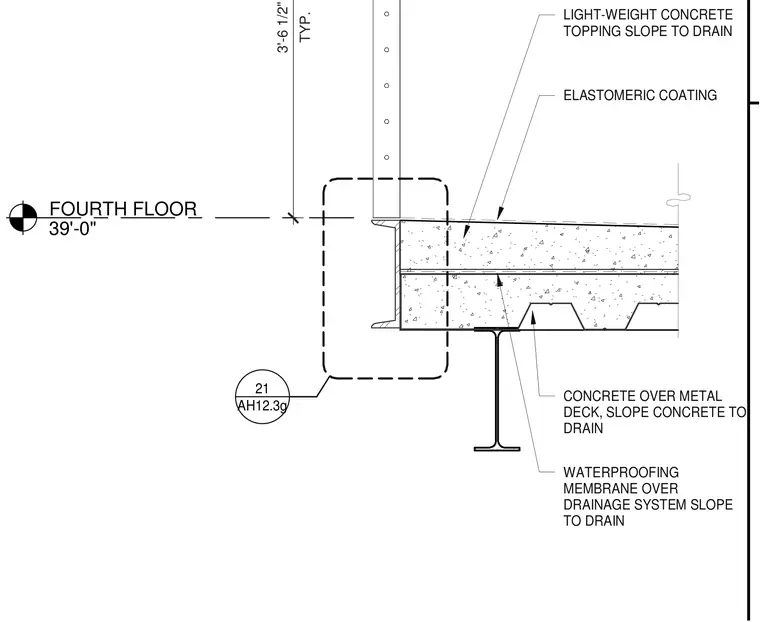

A decorative guard extends three feet six and a half inches above the fourth floor level at elevation thirty-nine feet zero inches. The floor assembly consists of concrete over a metal deck sloped to drain, topped with lightweight concrete and an elastomeric coating. A waterproofing membrane sits over a drainage system installed above the concrete slab. The slab is supported by a structural steel beam.
FOURTH FLOOR 39'-0" TYP. 3'-6 1/2" AH12.3g 21 ELASTOMERIC COATING LIGHT-WEIGHT CONCRETE TOPPING SLOPE TO DRAIN WATERPROOFING MEMBRANE OVER DRAINAGE SYSTEM SLOPE TO DRAIN CONCRETE OVER METAL DECK, SLOPE CONCRETE TO DRAIN
