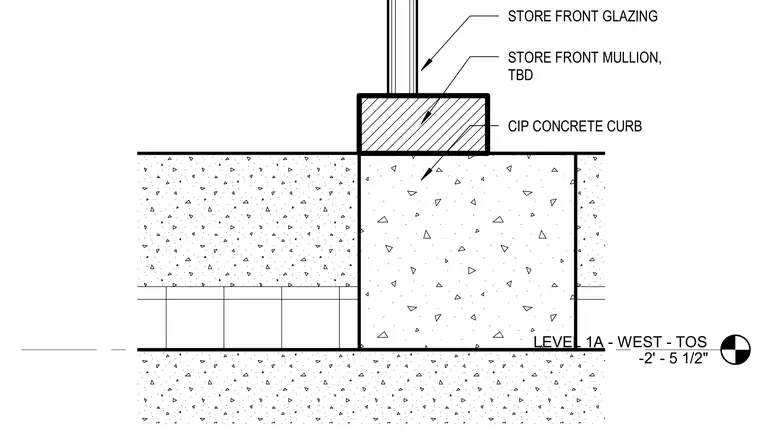

Storefront glazing sits atop a storefront mullion, which is supported by a cast-in-place concrete curb. The curb is anchored or cast monolithically with the structural concrete slab below. The mullion size and profile are to be determined per the schedule. The concrete curb establishes the finished floor level and alignment for the storefront system.
LEVEL 1A - WEST - TOS -2' - 5 1/2" STORE FRONT GLAZING STORE FRONT MULLION, TBD CIP CONCRETE CURB
