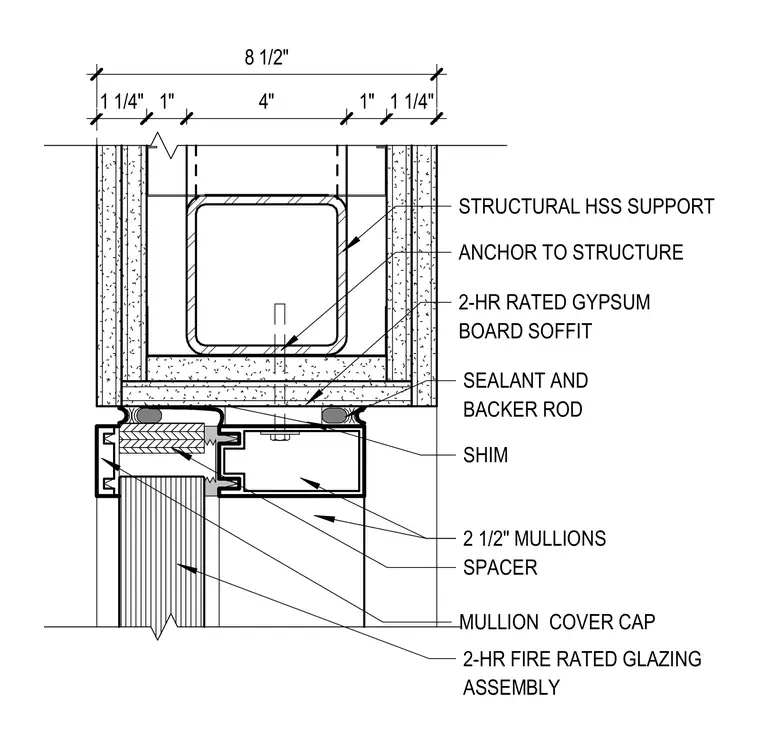

A two-hour fire-rated glazing assembly is supported by a structural hollow structural section anchored from above. The structural support is wrapped in a two-hour rated gypsum board soffit, isolated with sealant and backer rod at the joint. A two and one-half inch mullion frame connects beneath with shims for alignment, containing spacers and mullion cover caps. The glass assembly is secured within the framing profile.
2 1/2" MULLIONS SHIM 2-HR RATED GYPSUM BOARD SOFFIT 2-HR FIRE RATED GLAZING ASSEMBLY SEALANT AND BACKER ROD MULLION COVER CAP STRUCTURAL HSS SUPPORT 1 1/4" 1" 4" 1" 1 1/4" 8 1/2" SPACER ANCHOR TO STRUCTURE
