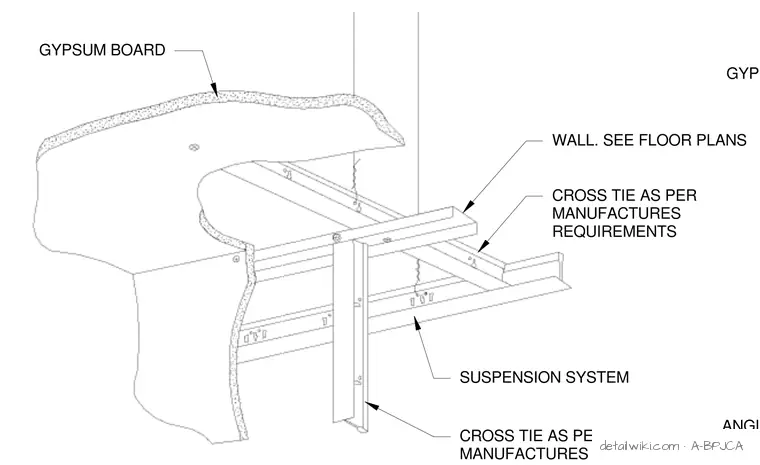

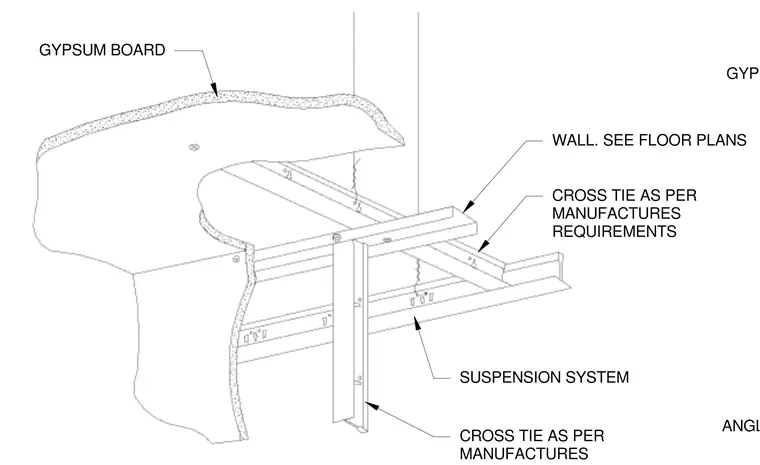

A-BPJCA — Ceiling Detail

Architectural · A-BPJCA

Ceiling Detail

Units: metric
Sheet: A-580
Discipline: Architectural

Materials

Gypsum / Drywall Steel

Elements

Ceilings Floors / Slabs Reinforcing Walls

Text on the drawing

CROSS TIE AS PER MANUFACTURES SUSPENSION SYSTEM CROSS TIE AS PER MANUFACTURES REQUIREMENTS WALL. SEE FLOOR PLANS GYPSUM BOARD ANGLE MOLDING GYPSUM BOARD

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
