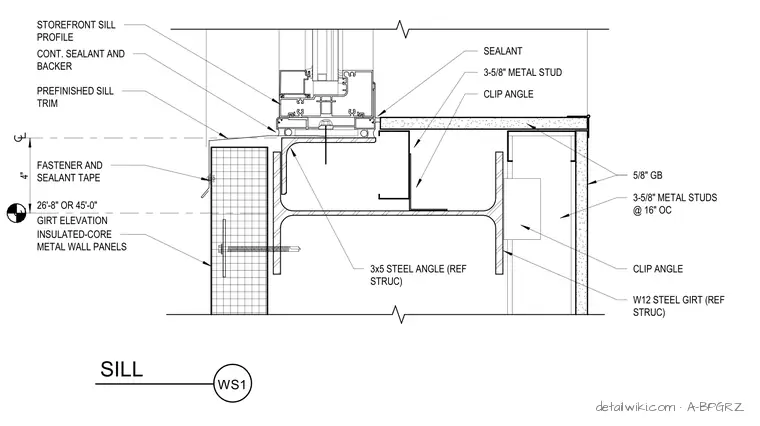

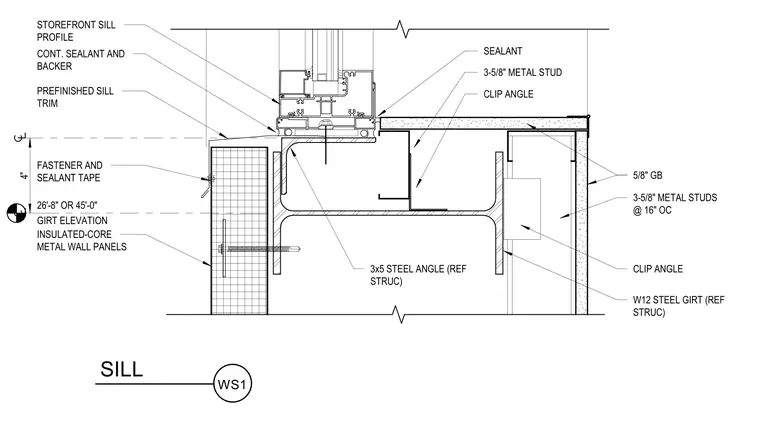

A storefront sill profile sits atop a prefinished sill trim and a three-by-five-inch steel angle, which is referenced from the structural drawings. The assembly ties back to a W12 structural steel girt with clip angles and three-and-five-eighths-inch cold-formed metal studs spaced at sixteen inches on center. The interior finish consists of five-eighths-inch gypsum board over the metal framing. Continuous sealant and backer rod provide weather sealing at the window sill interface, while fastener and sealant tape secure the exterior metal panels.
PREFINISHED SILL TRIM INSULATED-CORE METAL WALL PANELS 3x5 STEEL ANGLE (REF STRUC) FASTENER AND SEALANT TAPE 3-5/8" METAL STUDS @ 16" OC 5/8" GB W12 STEEL GIRT (REF STRUC) 3-5/8" METAL STUD CLIP ANGLE CLIP ANGLE SEALANT STOREFRONT SILL PROFILE CONT. SEALANT AND BACKER SILL WS1 4" 26'-8" OR 45'-0" GIRT ELEVATION
