A half-inch electrical nonmetallic tubing is embedded in the precast concrete tight to the exterior face. The tubing continues within the door jamb to transfer to the hinge box. It terminates on the interior at fourteen feet, adjacent to a six-inch by six-inch by six-inch gutter with the bottom of the wireway positioned at twelve feet above finished floor.

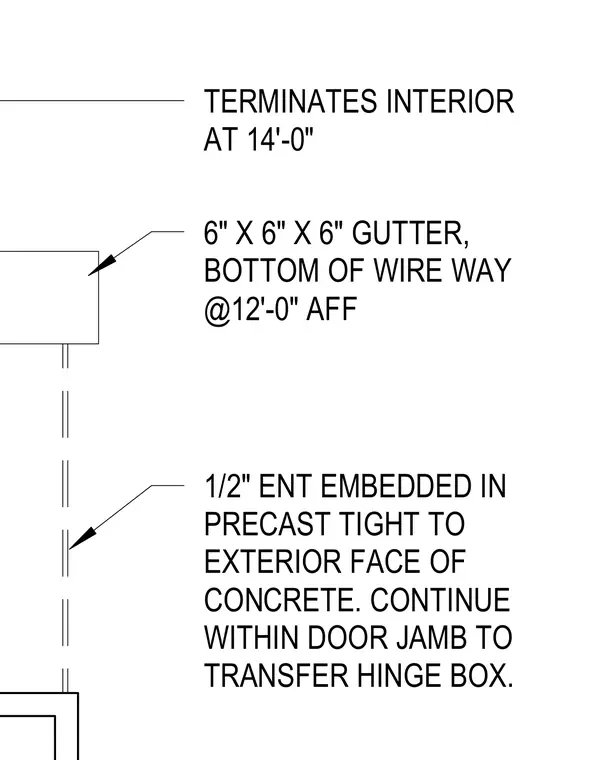

1/2" ENT EMBEDDED IN PRECAST TIGHT TO EXTERIOR FACE OF CONCRETE. CONTINUE WITHIN DOOR JAMB TO TRANSFER HINGE BOX. TERMINATES INTERIOR AT 14'-0" 6" X 6" X 6" GUTTER, BOTTOM OF WIRE WAY @12'-0" AFF
