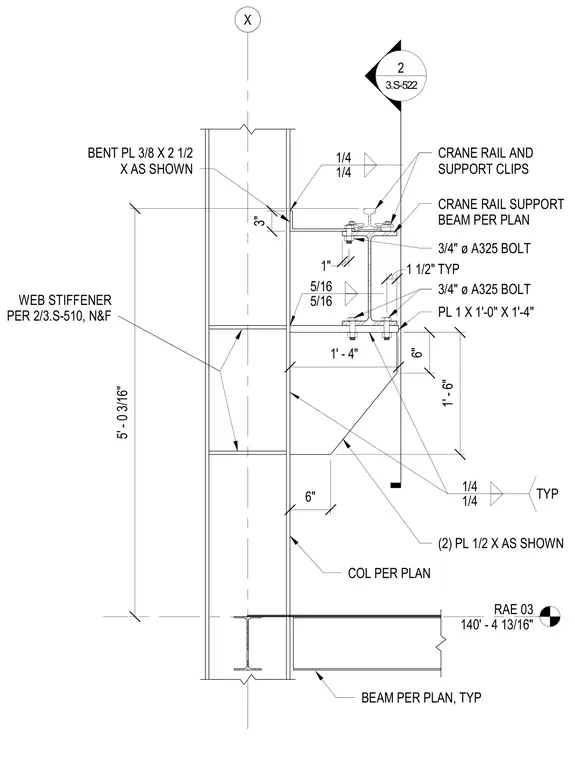

A crane rail is supported by clips atop a steel support beam sized per plan, which connects back to a structural steel column per plan using a 1-inch by 1-foot-0-inch by 1-foot-4-inch plate secured with three-quarter-inch diameter A325 bolts. A three-eighths-inch by 2-and-a-half-inch bent plate ties the top flange of the support beam to the column face with quarter-inch fillet welds typically. Two one-half-inch plates act as gussets beneath the support beam, welded with quarter-inch fillet welds. Web stiffeners are welded near and far to the column web in accordance with detail 2/3.S-510.
RAE 03 140' - 4 13/16" X 2 3.S-522 BENT PL 3/8 X 2 1/2 X AS SHOWN 3" 1" 6" 6" 1' - 6" 1/4 1/4 TYP (2) PL 1/2 X AS SHOWN 5/16 5/16 PL 1 X 1'-0" X 1'-4" 1' - 4" 1/4 1/4 3/4" ø A325 BOLT CRANE RAIL AND SUPPORT CLIPS CRANE RAIL SUPPORT BEAM PER PLAN 1 1/2" TYP 3/4" ø A325 BOLT COL PER PLAN BEAM PER PLAN, TYP 5' - 0 3/16" WEB STIFFENER PER 2/3.S-510, N&F
