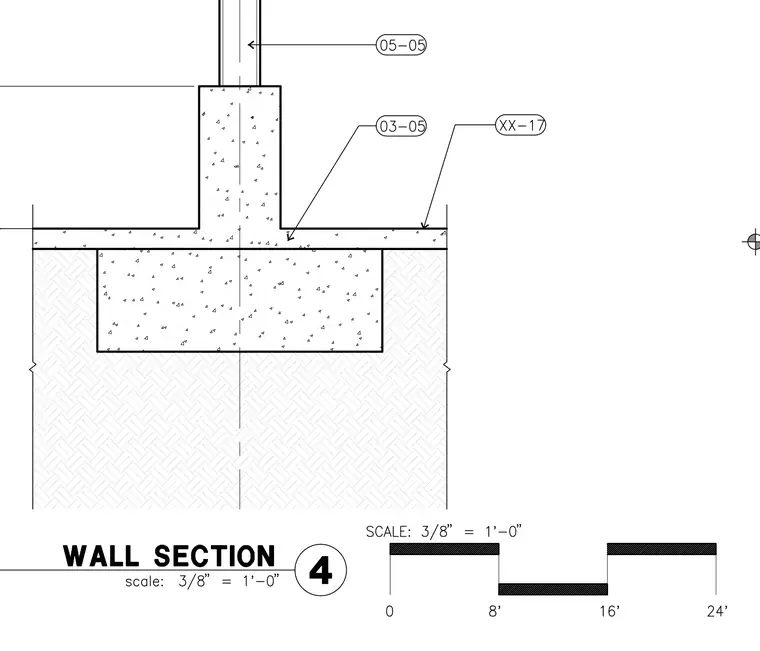

A reinforced concrete stem wall bears on a continuous concrete footing set into compacted soil subgrade. A concrete slab-on-grade abuts the stem wall, integrating with the foundation assembly. Callout references indicate connections to adjacent details for wall construction, slab transitions, and waterproofing.
