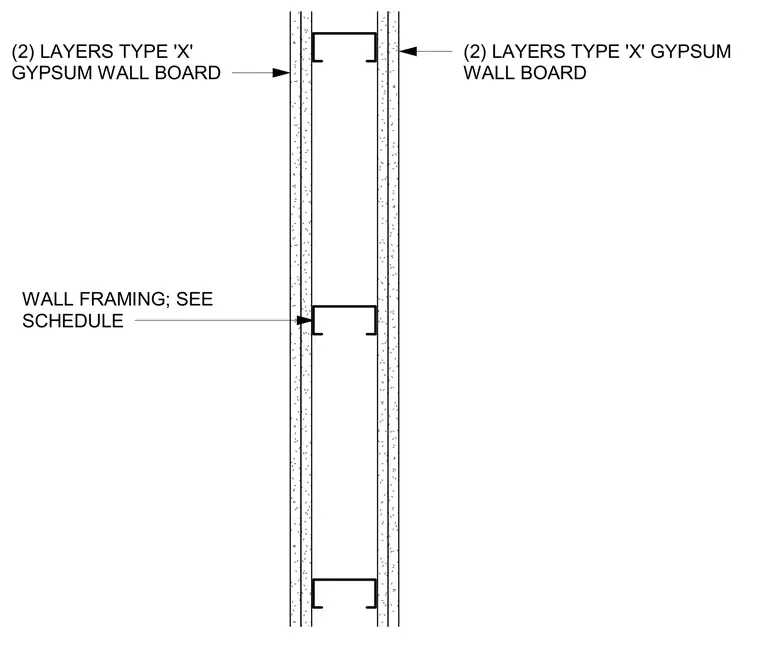

Two layers of Type X gypsum wall board are fastened to each side of cold-formed metal wall framing studs. The metal framing is sized per the structural or architectural schedules. The gypsum panels are applied in parallel layers to meet specific fire-resistance or acoustical ratings.
(2) LAYERS TYPE 'X' GYPSUM WALL BOARD WALL FRAMING; SEE SCHEDULE (2) LAYERS TYPE 'X' GYPSUM WALL BOARD
