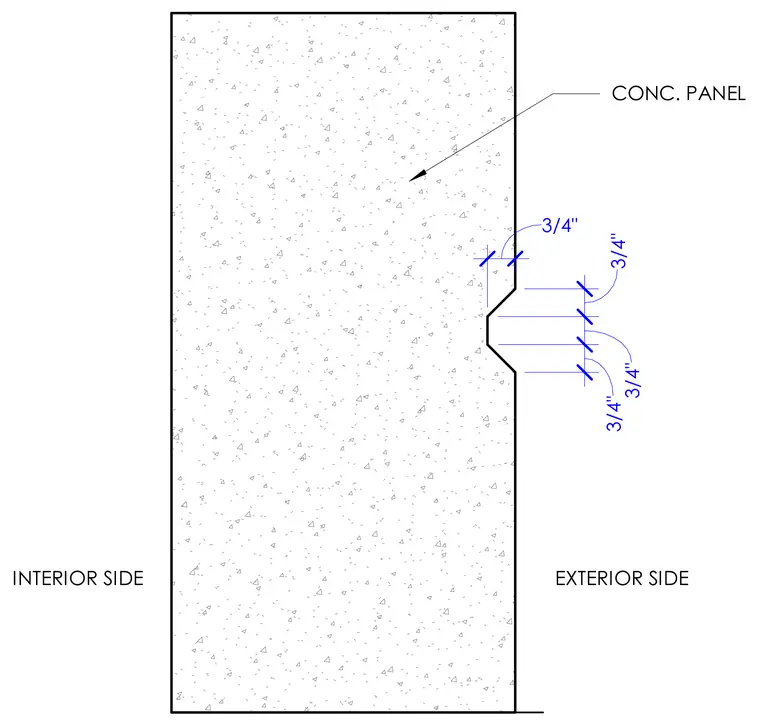

An architectural concrete wall panel features a recessed reveal profile on its exterior face. The reveal has 3/4-inch dimensional offsets establishing the profile depth and width. The interior side of the panel remains flat and uninterrupted.
EXTERIOR SIDE CONC. PANEL INTERIOR SIDE 3/4" 3/4" 3/4" 3/4"
