An epoxy resin countertop with a chamfered edge sits above casework framing with a specified clearance for cabinet doors or drawers where they occur. Vertical dimensions establish the thickness and overhang relative to the underlying millwork substrate.

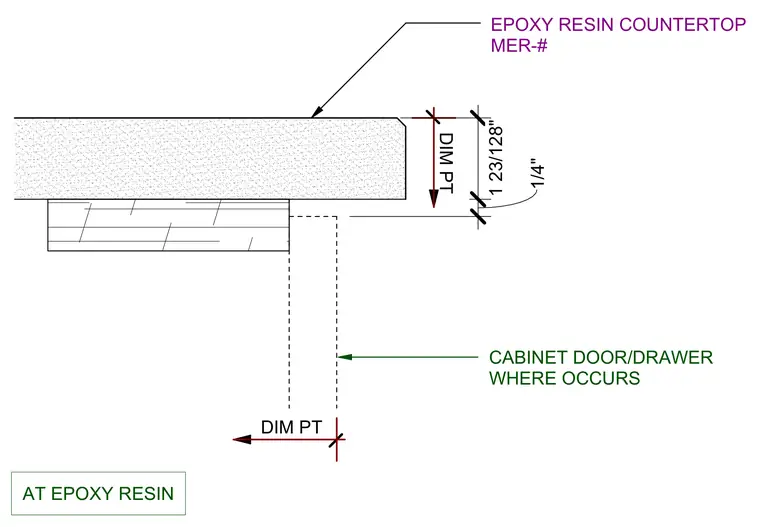

AT EPOXY RESIN CABINET DOOR/DRAWER WHERE OCCURS DIM PT DIM PT 1/4" 1 23/128" EPOXY RESIN COUNTERTOP MER-#
