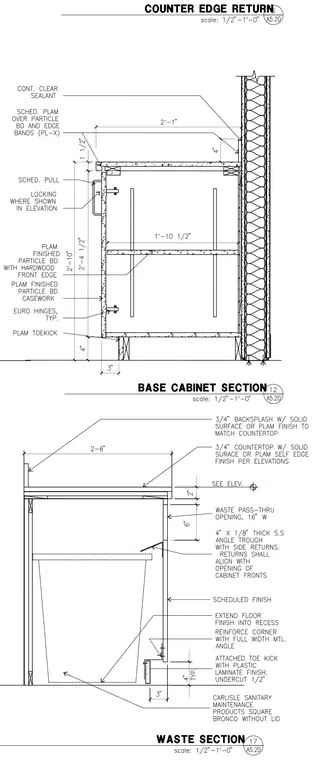

Architectural sections detail millwork base cabinets, counter edge returns, and waste receptacle enclosures. The cabinet assembly features scheduled plastic laminate over particle board casework with hardwood front edges, Euro hinges, and a plastic laminate toekick. The countertop incorporates scheduled plastic laminate or solid surface with a four-inch backsplash and continuous clear sealant at the wall junction. The waste receptacle section details a four-inch by one-eighth-inch thick stainless steel angle trough with side returns aligned with the cabinet front opening, alongside a sixteen-inch wide waste pass-through opening. Floor finishes extend into the recess with reinforced metal corner angles at the base.
