A one-and-one-quarter-inch-thick solid surface countertop nosing bears on a one-by cabinet frame and plywood doors finished with plastic laminate. All exposed edges are eased and provided with three-millimeter PVC edge banding matching the doors and frames. Sealant is applied at the floor and all applied junctions as specified. The countertop material and finish are installed per the interior finish schedule and legend.

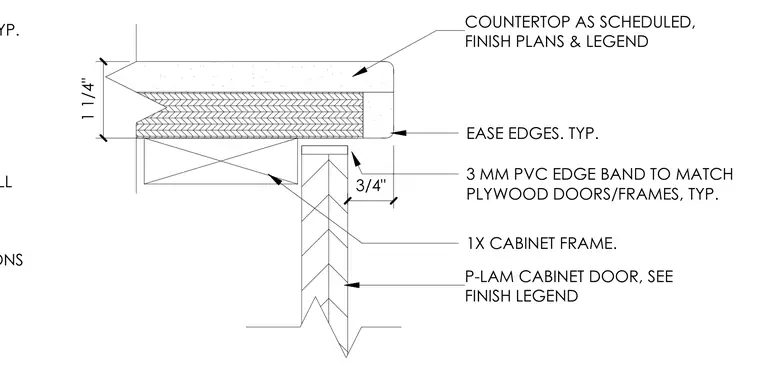

3 MM PVC EDGE BAND. TYP. SEALANT AT FLOOR, TYP ALL APPLIED. SEE SPECIFICATIONS EASE EDGES. TYP. 3 MM PVC EDGE BAND TO MATCH PLYWOOD DOORS/FRAMES, TYP. 1 1/4" 3/4" 1X CABINET FRAME. COUNTERTOP AS SCHEDULED, FINISH PLANS & LEGEND P-LAM CABINET DOOR, SEE FINISH LEGEND
