Architectural · A-BN6CP

Facade Fin Head Profile at Parapet

Materials

Concrete Steel Composite

Elements

Columns Beams Walls Curtain Walls Facades / Cladding Roofs Parapets Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection Deck Attachment

About this detail

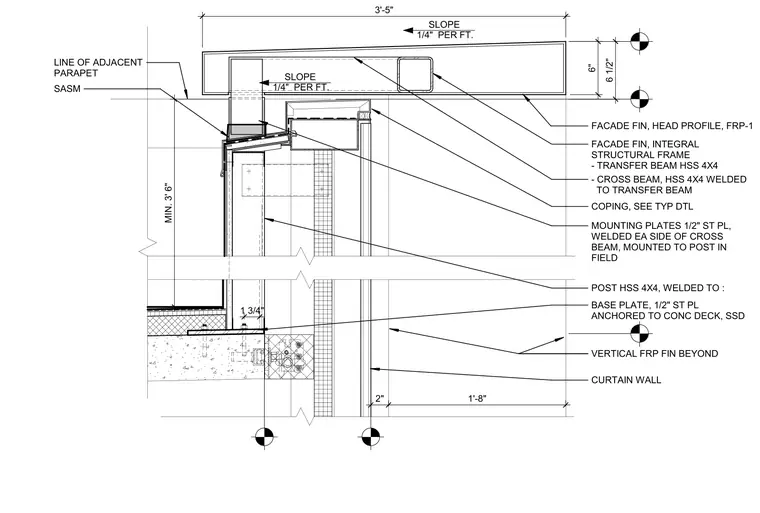

A vertical fiber-reinforced polymer facade fin extends past a parapet line with a head profile assembly. The structural frame consists of an HSS 4x4 transfer beam and an HSS 4x4 cross beam welded together, supporting the fin head. An HSS 4x4 vertical post connects to a one-half-inch steel base plate anchored to the concrete deck using stainless steel fasteners. One-half-inch steel mounting plates are welded to each side of the cross beam and field-mounted to the structural post. A metal coping and curtain wall assembly integrate at the parapet junction with specified slopes.
