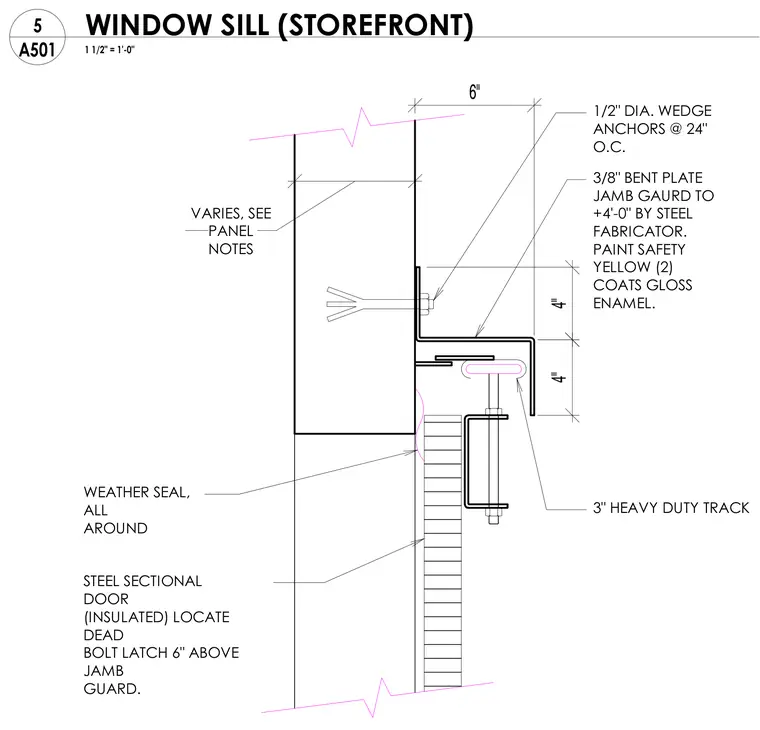

A three-eighths-inch bent plate jamb guard extends to four feet zero inches and is anchored with one-half-inch diameter wedge anchors spaced at twenty-four inches on center. The jamb guard is finished with two coats of safety yellow gloss enamel paint. An insulated three-inch heavy-duty track steel sectional door operates adjacent to the guard, positioned with a dead bolt latch located six inches above the jamb guard. A continuous weather seal is applied all around the perimeter.
VARIES, SEE PANEL NOTES 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND 1 1/2" = 1'-0" A501 5 WINDOW SILL (STOREFRONT)
