A hollow metal frame connects to a metal stud partition finished with gypsum board layers on both sides. The frame is secured to the wall construction using a minimum of three hollow metal frame wall anchors per jamb attached with minimum number eight sheet metal screws. A hollow metal glazing stop secures the glass as scheduled using minimum number ten countersunk flat head machine screws spaced at a maximum of twelve inches on center. Partition framing is provided as indicated by the metal stud framing diagrams with dimensions noted.

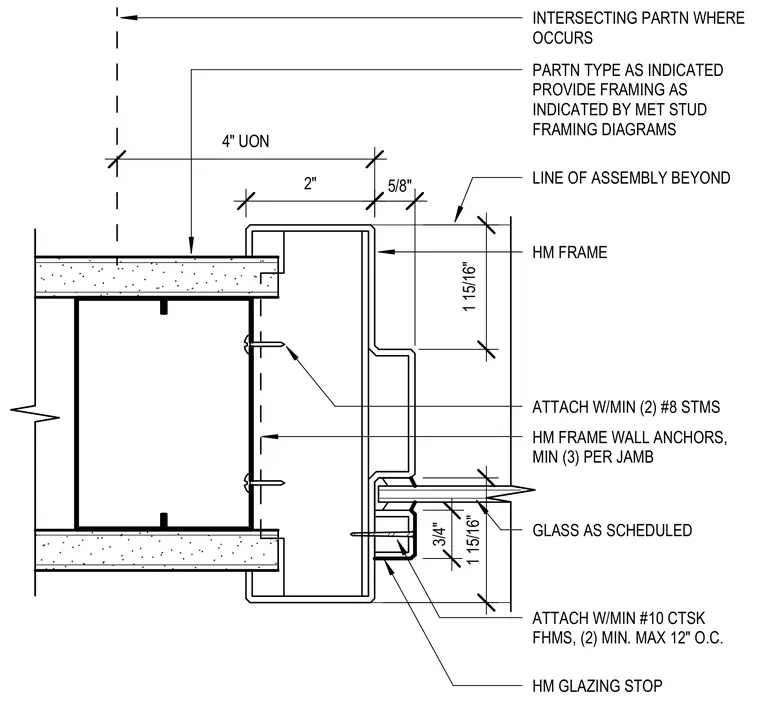

4" UON 2" 3/4" 5/8" 1 15/16" 1 15/16" PARTN TYPE AS INDICATED PROVIDE FRAMING AS INDICATED BY MET STUD FRAMING DIAGRAMS HM FRAME WALL ANCHORS, MIN (3) PER JAMB HM FRAME ATTACH W/MIN (2) #8 STMS HM GLAZING STOP GLASS AS SCHEDULED LINE OF ASSEMBLY BEYOND ATTACH W/MIN #10 CTSK FHMS, (2) MIN. MAX 12" O.C. INTERSECTING PARTN WHERE OCCURS
