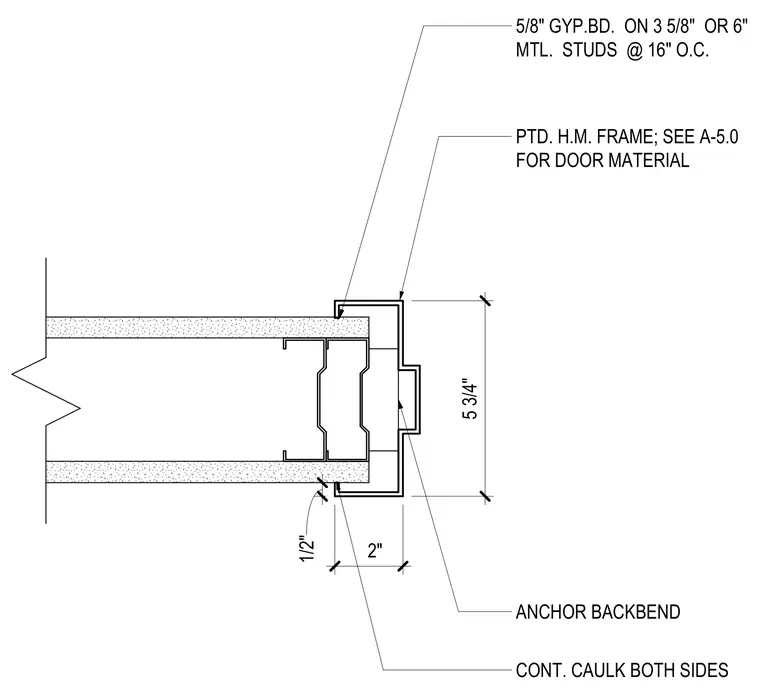

A painted hollow metal frame connects to a partition constructed of 5/8-inch gypsum board on three and five-eighths inch or six-inch metal studs spaced at sixteen inches on center. The frame features an anchor backbend and continuous caulk on both sides at the gypsum board return. Dimensions indicate a two-inch frame face return and a five and three-quarters inch total frame depth.
1/2" 2" 5 3/4" 5/8" GYP.BD. ON 3 5/8" OR 6" MTL. STUDS @ 16" O.C. PTD. H.M. FRAME; SEE A-5.0 FOR DOOR MATERIAL ANCHOR BACKBEND CONT. CAULK BOTH SIDES
