Architectural · A-BMM3G

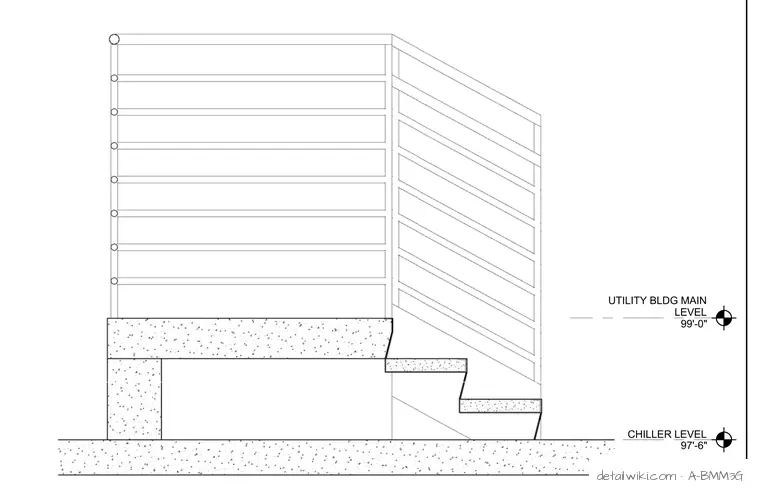

Utility Stair Detail

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Stairs

Text on the drawing

UTILITY BLDG MAIN LEVEL 99'-0" CHILLER LEVEL 97'-6"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
