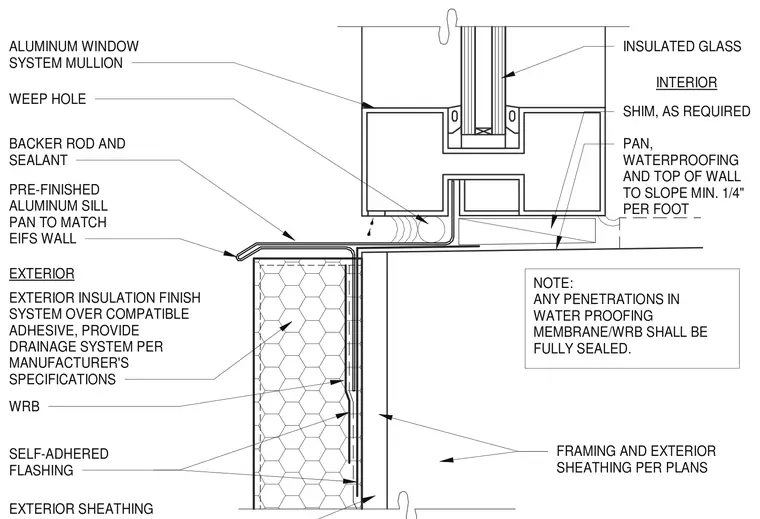

An aluminum window system rests on exterior framing and exterior sheathing, bedded on shams as required. A self-adhered flashing pan and waterproofing membrane are installed below the window sill, sloped a minimum of one-quarter inch per foot to shed moisture. A pre-finished aluminum sill pan matches the exterior insulation finish system wall, secured over exterior sheathing and a weather-resistive barrier. A backer rod and sealant seal the joint beneath the aluminum window system mullion, which features a weep hole. Any penetrations in the waterproofing membrane and weather-resistive barrier are fully sealed.
EXTERIOR FRAMING AND EXTERIOR SHEATHING PER PLANS SHIM, AS REQUIRED INSULATED GLASS NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. INTERIOR PRE-FINISHED ALUMINUM SILL PAN TO MATCH EIFS WALL EXTERIOR SHEATHING ALUMINUM WINDOW SYSTEM MULLION WEEP HOLE BACKER ROD AND SEALANT WRB EXTERIOR INSULATION FINISH SYSTEM OVER COMPATIBLE ADHESIVE, PROVIDE DRAINAGE SYSTEM PER MANUFACTURER'S SPECIFICATIONS SELF-ADHERED FLASHING PAN, WATERPROOFING AND TOP OF WALL TO SLOPE MIN. 1/4" PER FOOT
