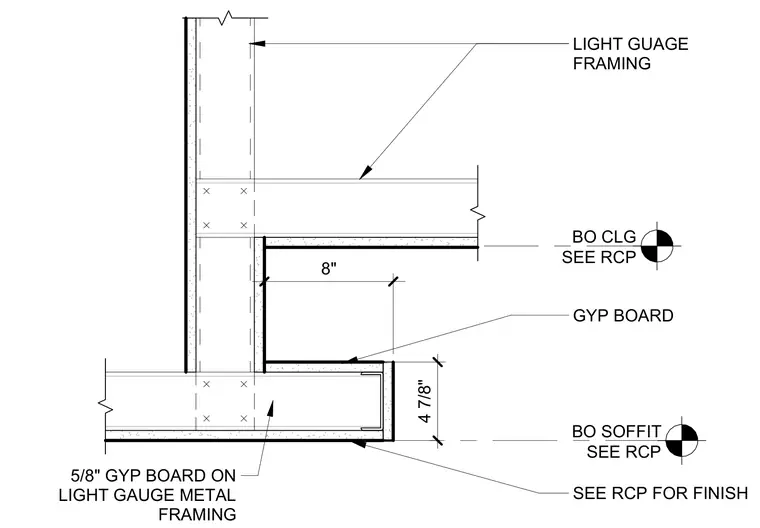

Light gauge metal framing supports a suspended gypsum board ceiling and vertical soffit assembly. Five-eighths-inch gypsum board clads the light gauge metal framing throughout. Bottom of ceiling and bottom of soffit elevations are coordinated per the reflected ceiling plan. Finishes are applied per the reflected ceiling plan.
BO SOFFIT SEE RCP BO CLG SEE RCP LIGHT GUAGE FRAMING GYP BOARD SEE RCP FOR FINISH 8" 5/8" GYP BOARD ON LIGHT GAUGE METAL FRAMING 4 7/8"
