A stud wall receives backing per framing details to support mounted equipment or fixtures. Number 14 sheet metal screws secure the assembly at six manufacturer mounting locations, split between three at the top and three at the bottom.

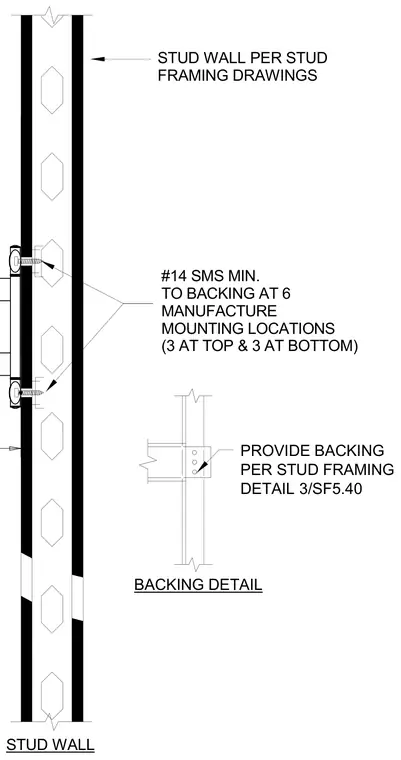

#14 SMS MIN. TO BACKING AT 6 MANUFACTURE MOUNTING LOCATIONS (3 AT TOP & 3 AT BOTTOM) STUD WALL PER STUD FRAMING DRAWINGS STUD WALL BACKING DETAIL PROVIDE BACKING PER STUD FRAMING DETAIL 3/SF5.40
