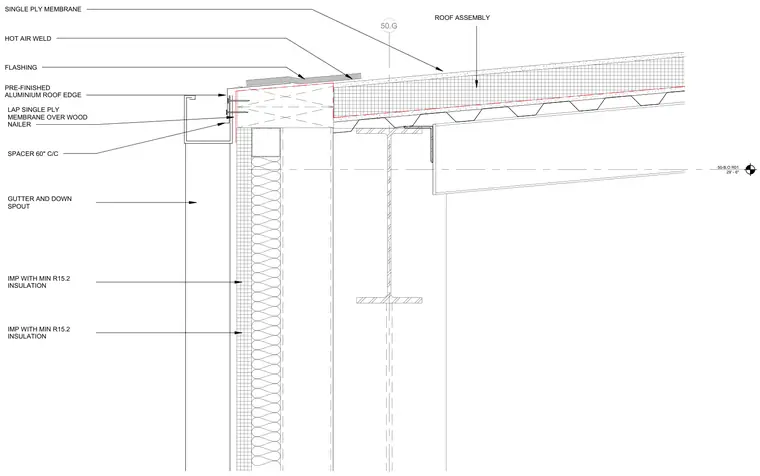

A single ply membrane is applied over the roof assembly and secured with a hot air welded flashing at the pre-finished aluminum roof edge. The membrane laps over a wood nailer supported by spacers spaced at sixty inches center-to-center. A gutter and downspout are integrated at the outside edge of the assembly. Insulated metal panels with a minimum R-15.2 insulation value form the wall construction below the roof line.
50-B.O R01 29' - 6" 50.G SINGLE PLY MEMBRANE HOT AIR WELD FLASHING PRE-FINISHED ALUMINIUM ROOF EDGE LAP SINGLE PLY MEMBRANE OVER WOOD NAILER SPACER 60" C/C GUTTER AND DOWN SPOUT ROOF ASSEMBLY IMP WITH MIN R15.2 INSULATION IMP WITH MIN R15.2 INSULATION
