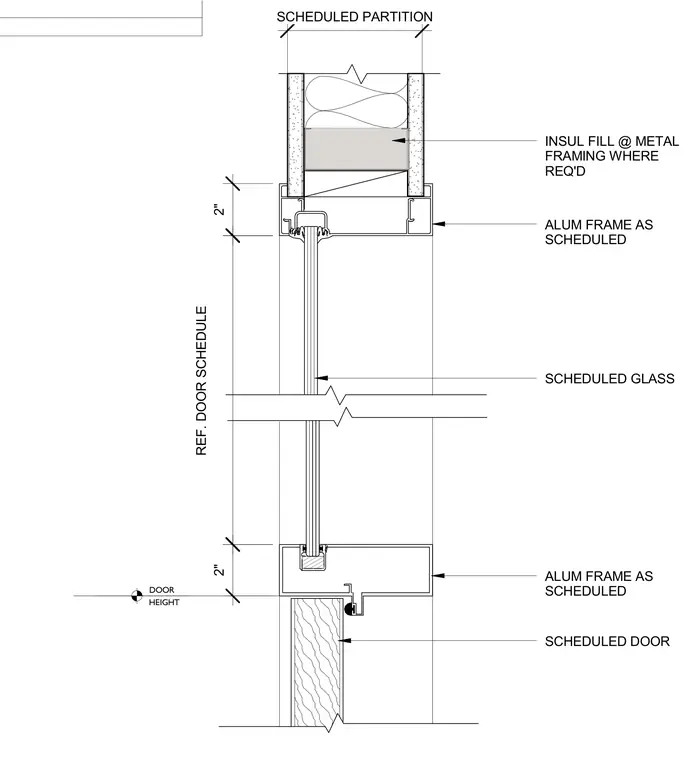

An aluminum transom door head assembly integrates with a scheduled partition framing above, containing insulation fill inside the metal framing where required. The aluminum frame supports scheduled glass between the transom bar and head section, referencing the door schedule for dimensions and glass specifications. A scheduled door operates beneath the bottom transom member, maintaining a two-inch vertical dimension module for the frame components.
SCHEDULED GLASS DOOR HEIGHT ALUM FRAME AS SCHEDULED SCHEDULED PARTITION ALUM FRAME AS SCHEDULED REF. DOOR SCHEDULE 2" 2" SCHEDULED DOOR INSUL FILL @ METAL FRAMING WHERE REQ'D
