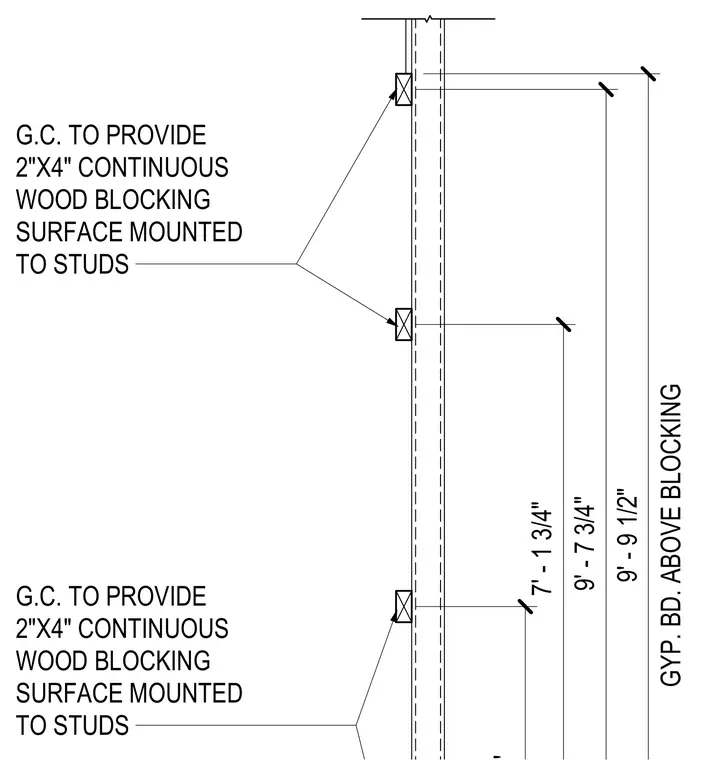

Continuous two-by-four wood blocking is surface-mounted to partition studs at heights of 7 feet 1 and 3/4 inches and 9 feet 7 and 3/4 inches. Gypsum board is installed above the blocking starting at a height of 9 feet 9 and 1/2 inches. The general contractor provides all wood blocking as detailed.
G.C. TO PROVIDE 2"X4" CONTINUOUS WOOD BLOCKING SURFACE MOUNTED TO STUDS 7' - 1 3/4" 9' - 7 3/4" GYP. BD. ABOVE BLOCKING 9' - 9 1/2" G.C. TO PROVIDE 2"X4" CONTINUOUS WOOD BLOCKING SURFACE MOUNTED TO STUDS
