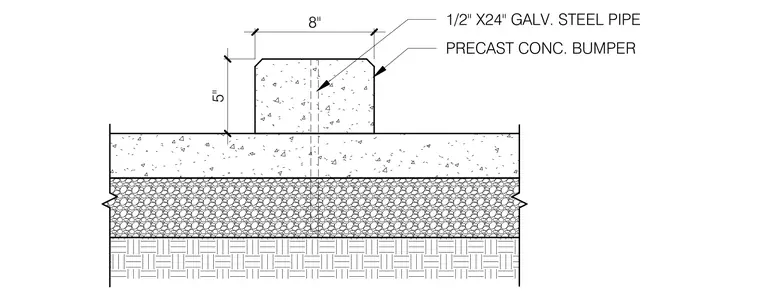

This assembly consists of a precast concrete bumper measuring eight inches wide by five inches high, secured to the pavement surface. The bumper is anchored using a one-half inch diameter by twenty-four inch long galvanized steel pipe that extends through the bumper and into the underlying pavement layers. The pavement section includes a concrete topping slab over a compacted aggregate base and subgrade.
Text on the drawing
PRECAST CONC. BUMPER 1/2" X24" GALV. STEEL PIPE 8" 5" SPACE LENGTH 1/8" = 1'-0" ACCESSIBLE EV PARKING SPACE 12
