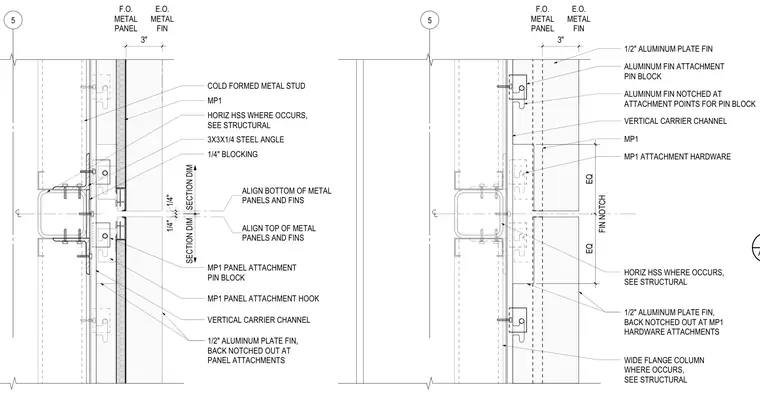

A horizontal joint assembly connects metal panel MP1 and a one-half inch aluminum plate fin cladding system. The assembly integrates a horizontal hollow structural section and a wide flange column backed by cold-formed metal studs. A three by three by one-quarter inch steel angle and a vertical carrier channel provide primary support, utilizing pin blocks and attachment hooks for panel and fin integration. The aluminum plate fins are back-notched at panel attachments and pin block locations to accommodate the hardware. Alignment dimensions coordinate the top and bottom of the metal panels and fins across the horizontal joint.
5 MP1 HORIZ HSS WHERE OCCURS, SEE STRUCTURAL VERTICAL CARRIER CHANNEL 1/2" ALUMINUM PLATE FIN, BACK NOTCHED OUT AT PANEL ATTACHMENTS 1/4" BLOCKING 3X3X1/4 STEEL ANGLE E.O. METAL FIN F.O. METAL PANEL MP1 PANEL ATTACHMENT PIN BLOCK MP1 PANEL ATTACHMENT HOOK SECTION DIM SECTION DIM ALIGN BOTTOM OF METAL PANELS AND FINS ALIGN TOP OF METAL PANELS AND FINS 3" 1/4" 1/4" COLD FORMED METAL STUD 5 HORIZ HSS WHERE OCCURS, SEE STRUCTURAL VERTICAL CARRIER CHANNEL WIDE FLANGE COLUMN WHERE OCCURS, SEE STRUCTURAL 1/2" ALUMINUM PLATE FIN, BACK NOTCHED OUT AT MP1 HARDWARE ATTACHMENTS E.O. METAL FIN F.O. METAL PANEL EQ EQ ALUMINUM FIN ATTACHMENT PIN BLOCK ALUMINUM FIN NOTCHED AT ATTACHMENT POINTS FOR PIN BLOCK FIN NOTCH . MP1 ATTACHMENT HARDWARE MP1 1/2" ALUMINUM PLATE FIN 3" A4.31
