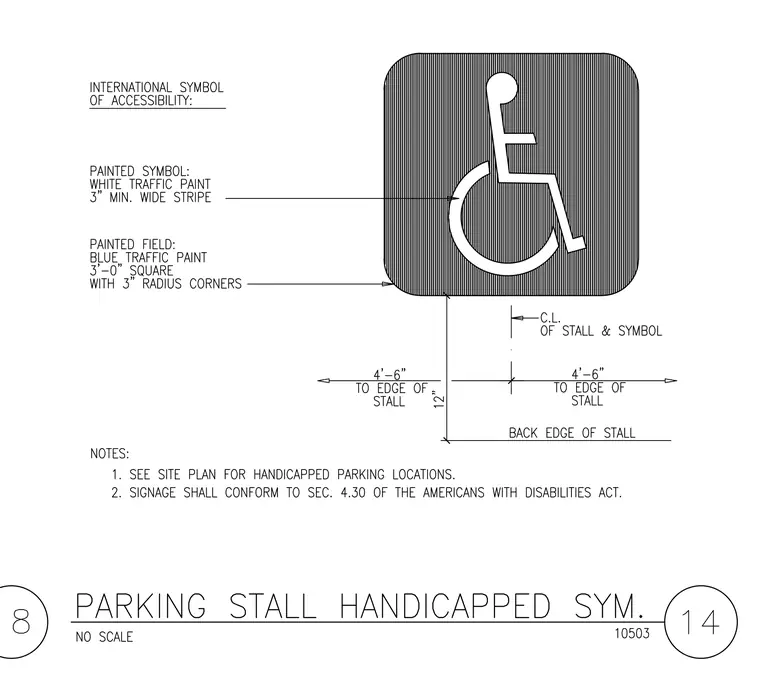

An international symbol of accessibility is painted using white traffic paint with three inch minimum wide stripes over a blue traffic field. The blue painted field measures three feet square with three inch radius corners. Dimensioning references the center line of the stall and symbol relative to the back edge of the stall. Additional notes reference the site plan for locations and the Americans with Disabilities Act section four point thirty for signage compliance.
