An aluminum transom sill and jamb assembly frames the entry door, integrating stops with weatherstripping on all sides. Glazing is installed per elevations. A weatherstrip sweep is provided at the bottom of the door.

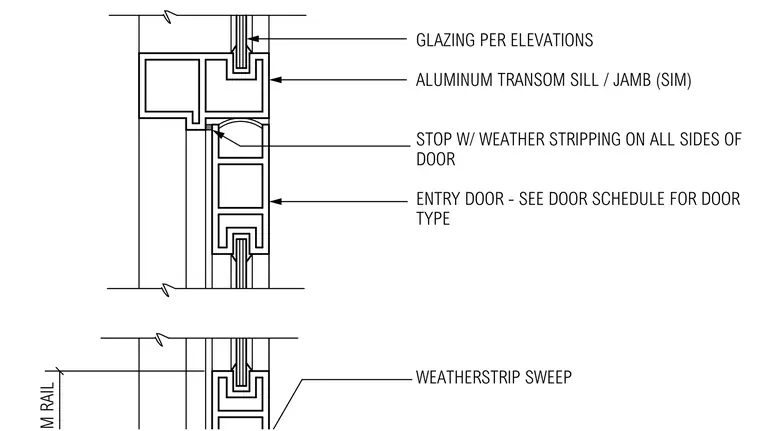

GLAZING PER ELEVATIONS ALUMINUM TRANSOM SILL / JAMB (SIM) STOP W/ WEATHER STRIPPING ON ALL SIDES OF DOOR ENTRY DOOR - SEE DOOR SCHEDULE FOR DOOR TYPE WEATHERSTRIP SWEEP
