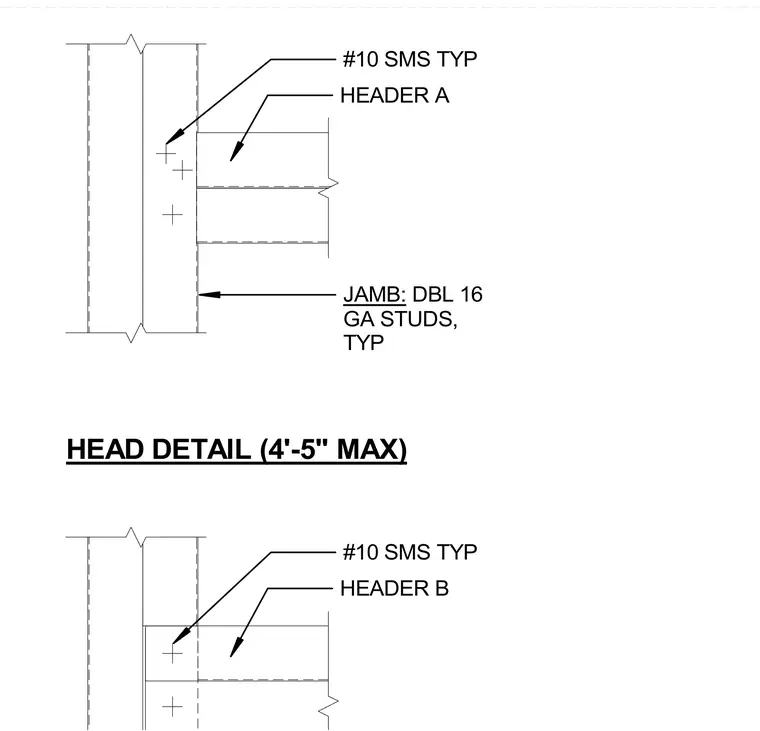

The jamb framing consists of double sixteen gauge cold-formed metal studs connected with typical number ten sheet metal screws. The header members designated as Header A and Header B frame into the double stud jamb assembly. Connection is secured using typical number ten sheet metal screws.
HEAD DETAIL (4'-5" MAX) JAMB: DBL 16 GA STUDS, TYP #10 SMS TYP HEADER A #10 SMS TYP HEADER B
