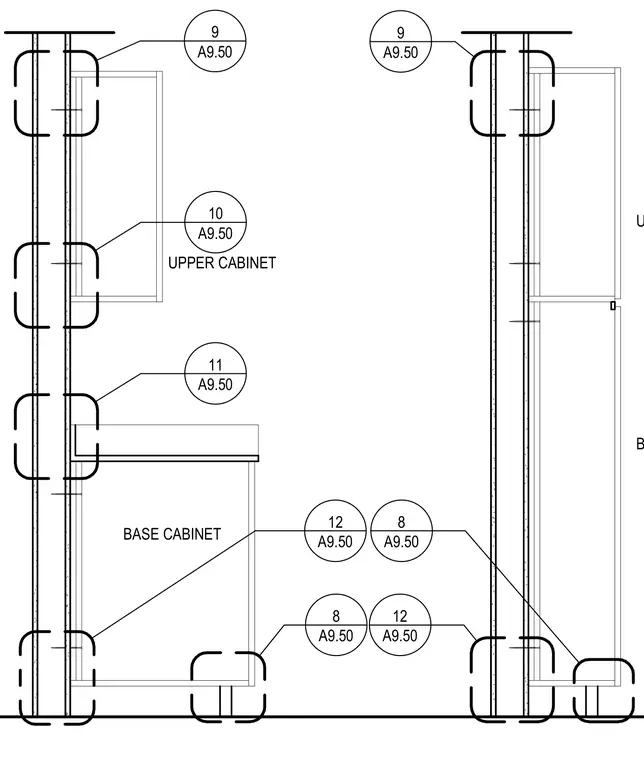

Base cabinets and upper cabinets attach to wall partitions with standard fasteners and blocking. The casework units align with interior partition framing, maintaining proper clearances and secure anchorage points throughout the assembly.
BASE CABINET UPPER CABINET UPPER CABINET BASE CABINET A9.50 9 A9.50 9 A9.50 12 A9.50 8 A9.50 8 A9.50 12 A9.50 10 A9.50 11
