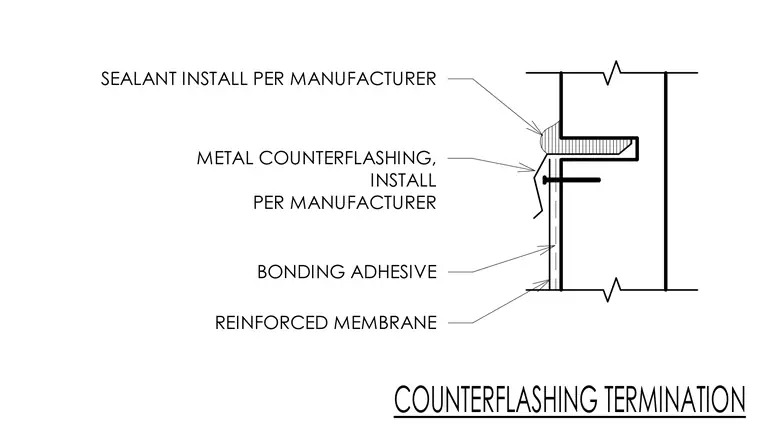

A reinforced membrane is secured with bonding adhesive, while metal counterflashing is installed per the manufacturer instructions and sealed at the top with sealant installed per the manufacturer.
SEALANT INSTALL PER MANUFACTURER METAL COUNTERFLASHING, INSTALL PER MANUFACTURER BONDING ADHESIVE REINFORCED MEMBRANE COUNTERFLASHING TERMINATION
