Architectural · A-BHSWR

Canopy Drainage and Parapet Detail

Materials

Steel Timber / Wood Aluminum Metal (misc.)

Elements

Beams Walls Roofs Parapets Canopies Decks Insulation Drainage Connections / Plates

About this detail

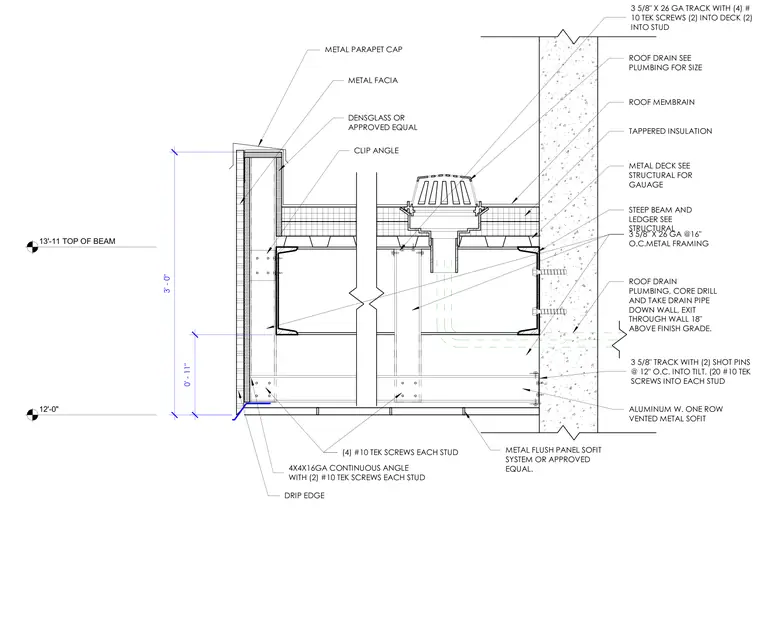

A canopy roof assembly features a roof drain connected to plumbing that core drills and routes the drain pipe down the wall to exit eighteen inches above finish grade. The roof deck consists of a metal deck supported by structural beams and ledgers, topped with tapered insulation and a roof membrane. The parapet is framed with three-and-five-eighths-inch by twenty-six-gauge metal framing at sixteen inches on center, sheathed with DensGlass, and finished with a metal fascia and metal parapet cap. The underside features a metal flush panel soffit system with an aluminum vented soffit and a four-by-four-by-sixteen-gauge continuous angle fastened with number ten TEK screws. The track is secured to the tilt-up wall with two shot pins at twelve inches on center and twenty number ten TEK screws into each stud, with additional track connections utilizing four number ten TEK screws tied into the deck and stud.
