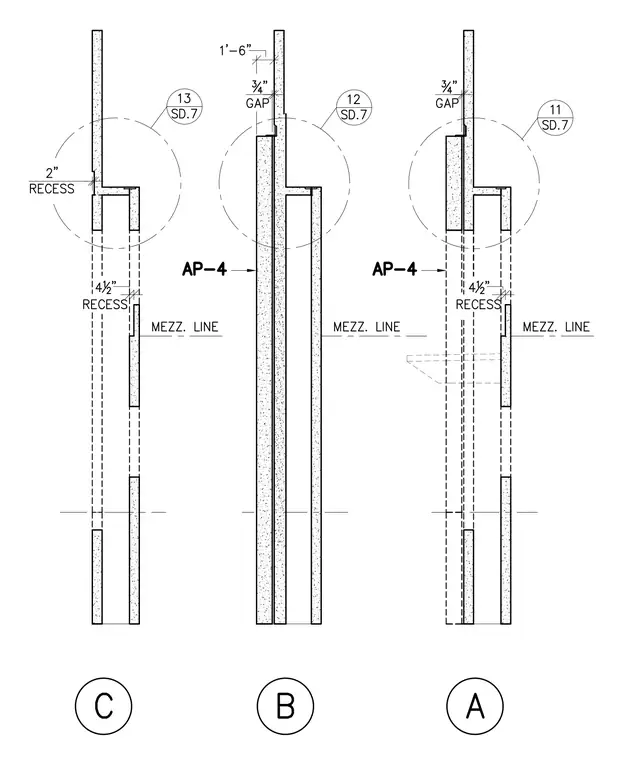

Three vertical sections show precast architectural panels, designated as AP-4, aligning with the mezzanine line. The assembly details panel joint configurations featuring a three-quarter inch gap, a two-inch recess, and a four-and-a-half-inch recess at specific locations. Detail options A, B, and C provide distinct joint conditions and dimensional alignments relative to the mezzanine line. Reference callouts point to larger scale details on sheet SD.7.
