Architectural · A-BHMY8

Stair Guardrail and Handrail Attachment at Stringer Support Post

Materials

Elements

About this detail

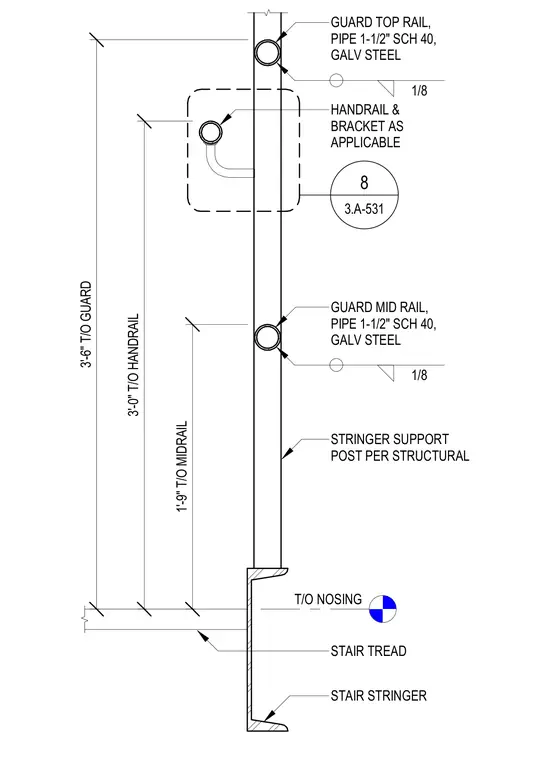

A galvanized steel stair stringer support post anchors to the stair stringer near the tread nosing. A guard top rail and guard mid rail, both constructed from 1-1/2 inch Schedule 40 galvanized steel pipe, connect to the support post with 1/8 inch fillet welds. A handrail and bracket attach to the post assembly, positioned at 3 feet 0 inches above the stair nosing. The top of the guardrail reaches 3 feet 6 inches, while the mid rail centers at 1 foot 9 inches.
