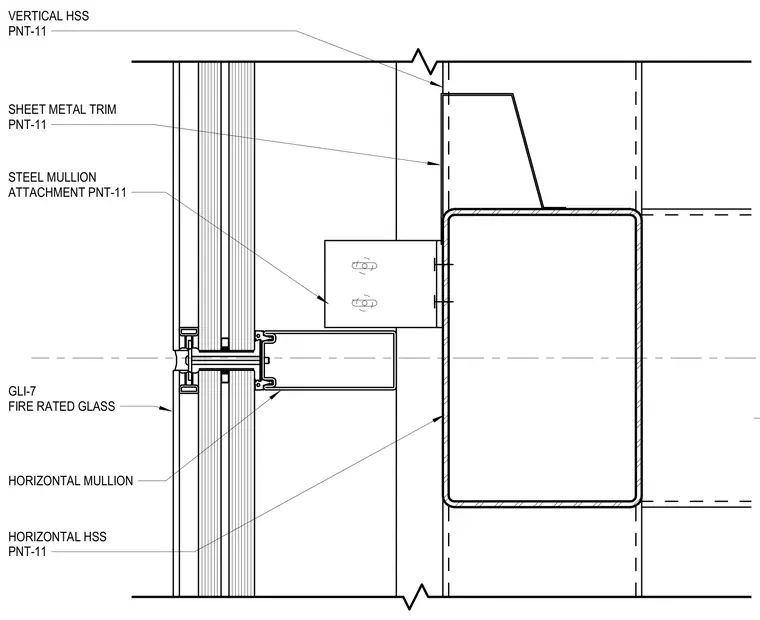

A fire-rated glass horizontal mullion attaches to a horizontal hollow structural section steel member via a steel mullion attachment plate. Sheet metal trim finishes the junction against the vertical and horizontal hollow structural sections. All exposed metal components receive a paint finish designated as PNT-11. Fire-rated glass panels secure within the framing system.
GLI-7 FIRE RATED GLASS HORIZONTAL MULLION STEEL MULLION ATTACHMENT PNT-11 SHEET METAL TRIM PNT-11 HORIZONTAL HSS PNT-11 VERTICAL HSS PNT-11
