A twelve-inch fourteen-gauge metal strap spans between existing and new metal studs, fastened to the studs with number eight screws. The finish is applied as scheduled.

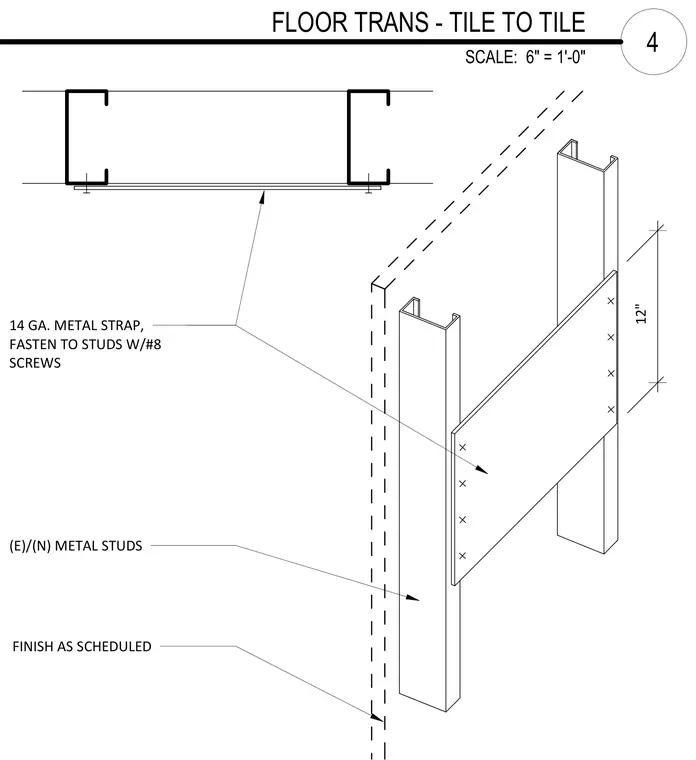

12" 14 GA. METAL STRAP, FASTEN TO STUDS W/#8 SCREWS (E)/(N) METAL STUDS FINISH AS SCHEDULED SCALE: 6" = 1'-0" 4 FLOOR TRANS - TILE TO TILE
