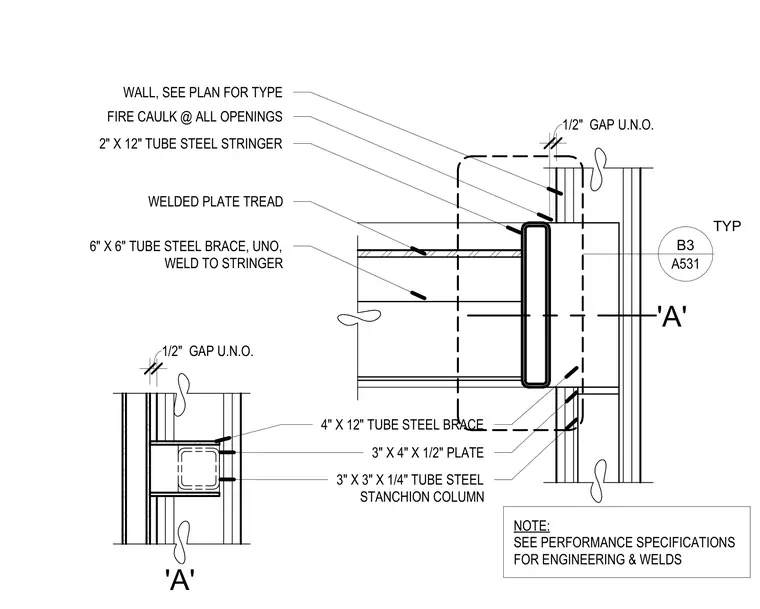

A structural steel stair landing connection features a 2" x 12" tube steel stringer framing into or adjacent to a wall sized per plan with a one-half-inch gap unless noted otherwise. Fire caulking is specified at all wall openings. A welded plate tread is attached to the stringer assembly, supplemented by a 6" x 6" tube steel brace welded to the stringer. A secondary view details a 3" x 3" x 1/4" tube steel stanchion column tied with a 3" x 4" x 1/2" plate and supported by a 4" x 12" tube steel brace. Engineering and weld requirements are governed by performance specifications.
1/2" GAP U.N.O. 'A' 'A' 1/2" GAP U.N.O. WALL, SEE PLAN FOR TYPE FIRE CAULK @ ALL OPENINGS 2" X 12" TUBE STEEL STRINGER 6" X 6" TUBE STEEL BRACE, UNO, WELD TO STRINGER 4" X 12" TUBE STEEL BRACE 3" X 4" X 1/2" PLATE 3" X 3" X 1/4" TUBE STEEL STANCHION COLUMN NOTE: SEE PERFORMANCE SPECIFICATIONS FOR ENGINEERING & WELDS TYP A531 B3 WELDED PLATE TREAD
