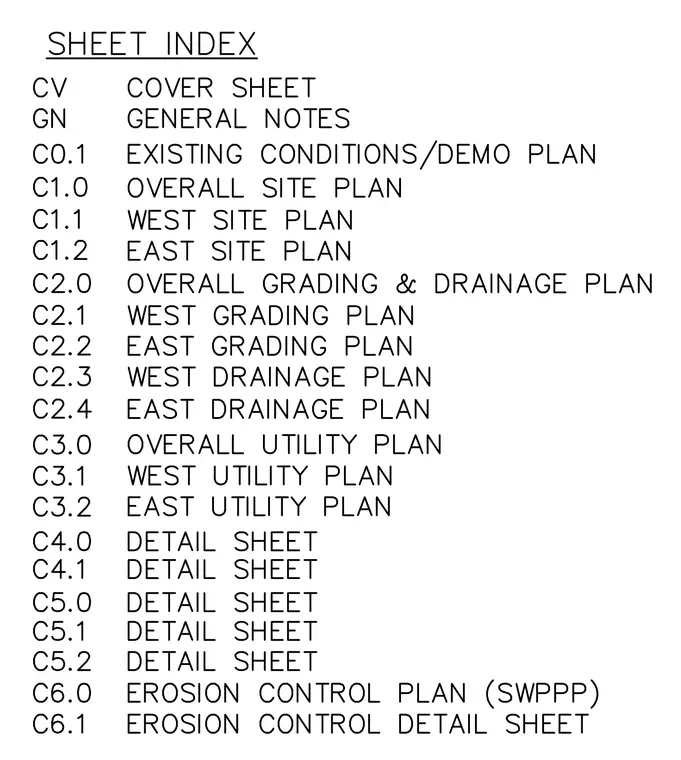

The sheet index lists drawing numbers and descriptions for civil engineering plan sets ranging from cover sheets and general notes through existing conditions, grading and drainage, utilities, details, and erosion control plans.
