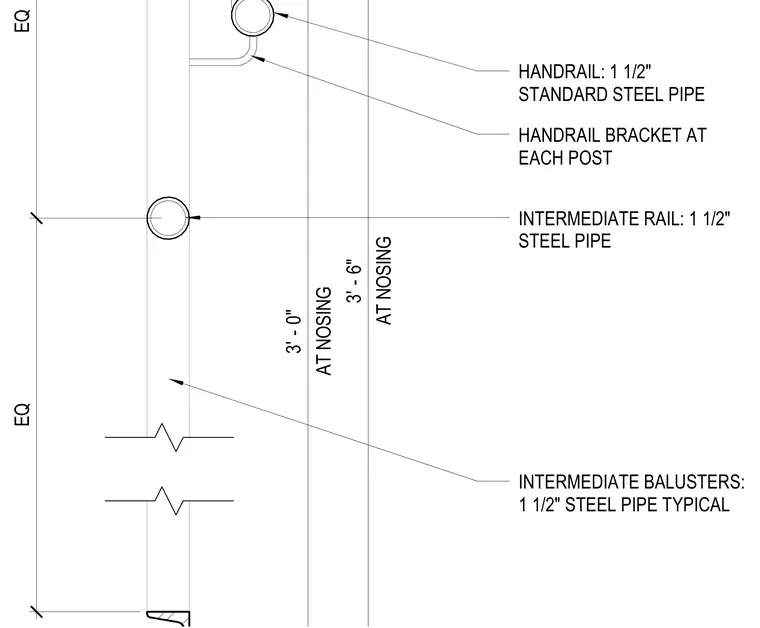

The stair guardrail and handrail assembly consists of a 1 1/2-inch standard steel pipe handrail attached at each post with a handrail bracket. An intermediate rail formed from 1 1/2-inch steel pipe is positioned below the top rail. Intermediate balusters constructed from 1 1/2-inch steel pipe are spaced typically along the stair run. Vertical heights are dimensioned at 3 feet 0 inches and 3 feet 6 inches at the nosing, with equal spacing between intermediate elements.
HANDRAIL: 1 1/2" STANDARD STEEL PIPE INTERMEDIATE BALUSTERS: 1 1/2" STEEL PIPE TYPICAL AT NOSING 3' - 0" AT NOSING 3' - 6" HANDRAIL BRACKET AT EACH POST EQ EQ INTERMEDIATE RAIL: 1 1/2" STEEL PIPE
