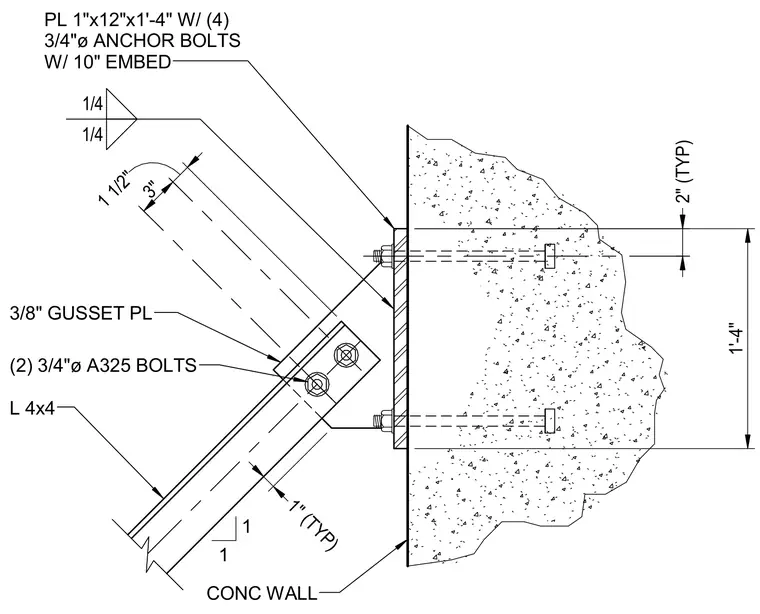

An angle brace connects to a concrete wall via a three-eighths-inch gusset plate welded with quarter-inch fillet welds. The gusset plate attaches to a one-inch by twelve-inch by one-foot four-inch base plate using two three-quarter-inch diameter A325 bolts. The base plate is embedded in the concrete wall with four three-quarter-inch diameter anchor bolts featuring ten-inch embedment depths.
3" 1 1/2" 3/8" GUSSET PL L 4x4 1/4 1/4 (2) 3/4"ø A325 BOLTS CONC WALL PL 1"x12"x1'-4" W/ (4) 3/4"ø ANCHOR BOLTS W/ 10" EMBED 1'-4" 1 1 1" (TYP) 2" (TYP)
