Architectural · A-BH27D

Millwork Cabinet Attachment and Wall Backing Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Waterproofing / Flashing Millwork / Casework Anchors / Embeds

About this detail

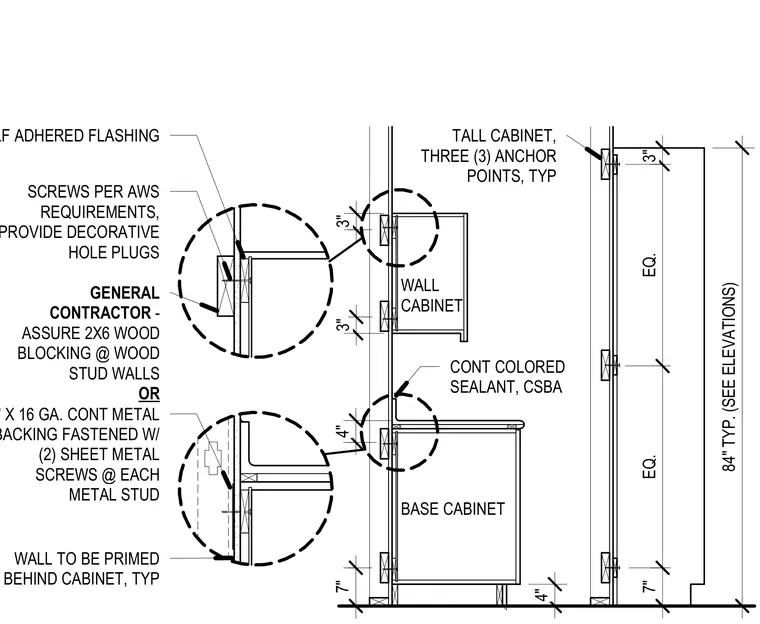

Base, wall, and tall cabinets are anchored to framed walls using continuous six-inch by sixteen-gauge metal backing fastened with two sheet metal screws at each metal stud, or two-by-six wood blocking at wood stud walls. The supporting wall is primed behind the cabinet, and continuous colored sealant is applied at joints. Cabinets feature three anchor points typical, with self-adhered flashing and decorative hole plugs installed per architectural woodwork standards.
