Architectural · A-BGYC5

Curtain Wall Head at Canopy Soffit Intersection

Materials

Steel Timber / Wood Masonry / CMU Gypsum / Drywall

Elements

Columns Walls Canopies Ceilings Waterproofing / Flashing Connections / Plates

Connections

HSS Connection

About this detail

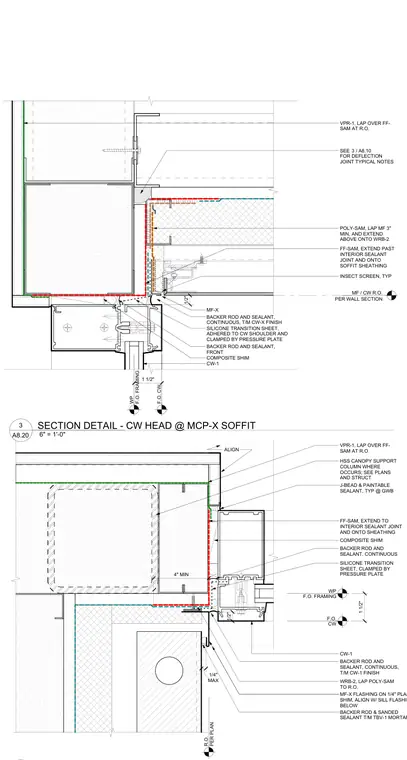

A curtain wall head connection meets a metal canopy soffit. The assembly incorporates continuous backer rods and sealants alongside a silicone transition sheet adhered to the curtain wall shoulder and clamped by a pressure plate. Poly-SAM and FF-SAM weather-resistive membranes lap over the rough opening framing and extend onto the soffit sheathing with designated minimum overlaps. An insect screen is integrated at the soffit condition, and composite shims position the metal flashing. Gypsum wallboard transitions utilize a J-bead with a paintable sealant joint.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
