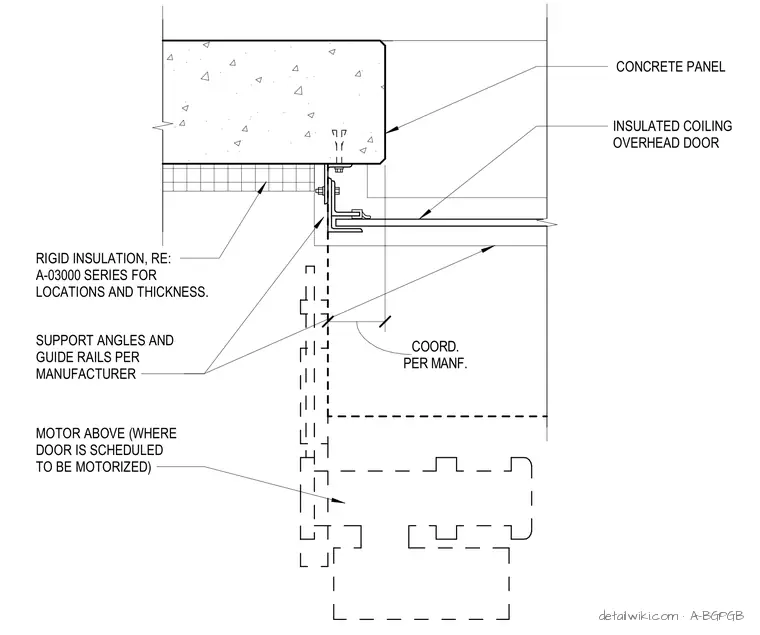

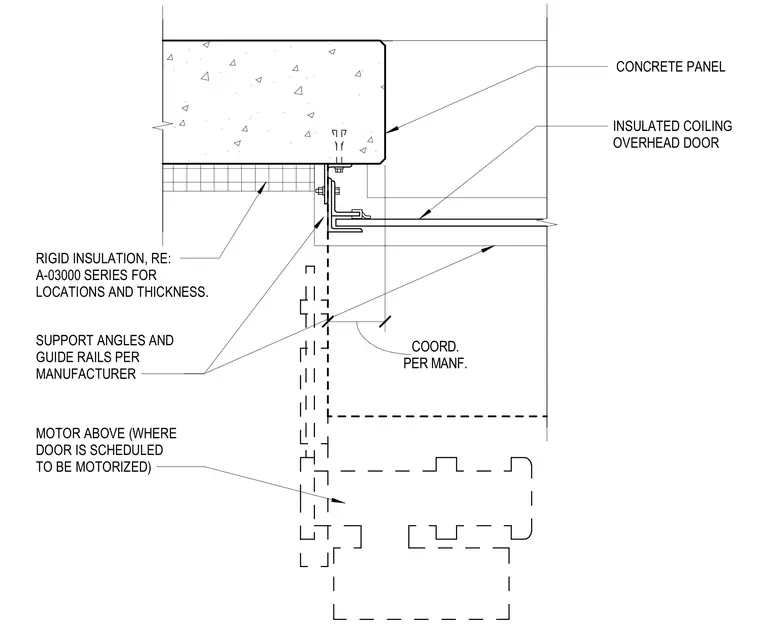

The jamb assembly for an insulated coiling overhead door mounts against a concrete panel wall. Door guide rails and support angles anchor to the concrete panel, with rigid insulation installed along the interior face of the wall. Coordinate with the manufacturer for specific guide rail placement and motor mounting requirements where motorized operation is specified. Refer to the A-03000 series drawings for specific insulation locations and thicknesses.
Text on the drawing
CONCRETE PANEL INSULATED COILING OVERHEAD DOOR SUPPORT ANGLES AND GUIDE RAILS PER MANUFACTURER MOTOR ABOVE (WHERE DOOR IS SCHEDULED TO BE MOTORIZED) PER MANF. COORD. RIGID INSULATION, RE: A-03000 SERIES FOR LOCATIONS AND THICKNESS.
