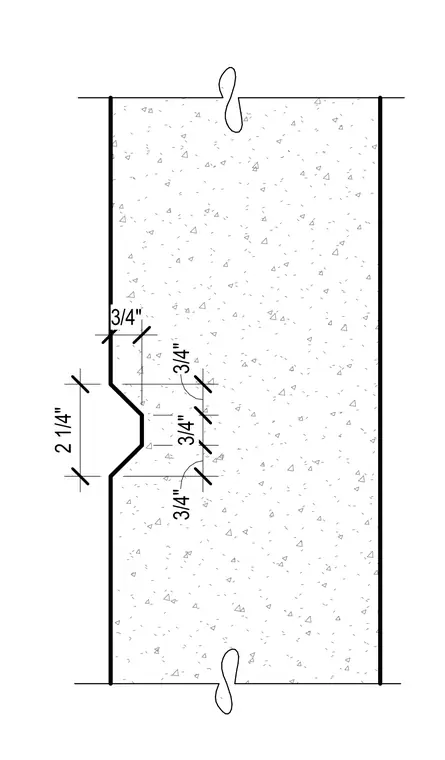

A architectural concrete tilt-up wall panel incorporates a formed V-groove reveal with precise dimensional layout. The reveal profile features three-quarter-inch chamfered edges transitioning to a flat base, spanning a total width of two and one-quarter inches with three-quarter-inch depths.
