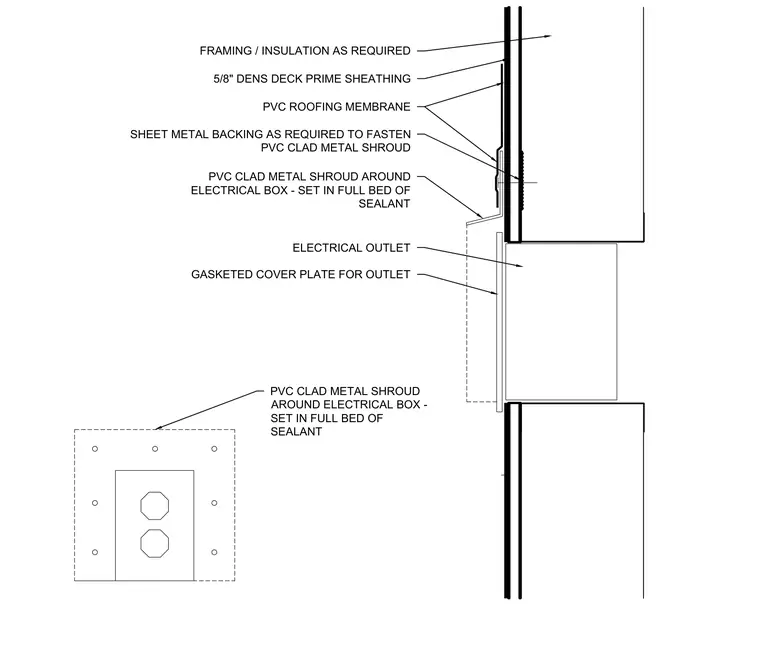

A PVC roofing membrane laps over 5/8 inch Dens Deck Prime sheathing and framing with insulation as required. A PVC clad metal shroud surrounds the electrical box and is set in a full bed of sealant, backed by sheet metal as required for fastening. An electrical outlet with a gasketed cover plate finishes the penetration.
5/8" DENS DECK PRIME SHEATHING FRAMING / INSULATION AS REQUIRED PVC ROOFING MEMBRANE PVC CLAD METAL SHROUD AROUND ELECTRICAL BOX - SET IN FULL BED OF SEALANT ELECTRICAL OUTLET GASKETED COVER PLATE FOR OUTLET PVC CLAD METAL SHROUD AROUND ELECTRICAL BOX - SET IN FULL BED OF SEALANT SHEET METAL BACKING AS REQUIRED TO FASTEN PVC CLAD METAL SHROUD
