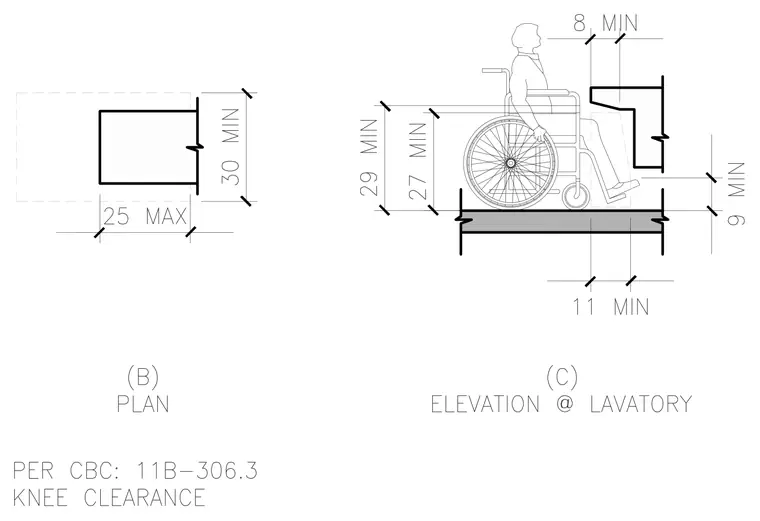

Wheelchair accessible lavatory knee clearance requirements detail dimensions for toe and knee clearances per California Building Code 11B-306.3. The plan view shows a thirty inch minimum width and twenty-five inch maximum depth. The elevation view indicates a twenty-seven inch minimum knee clearance height, twenty-nine inch minimum rim height, nine inch minimum toe clearance height, and an eleven inch minimum toe depth beneath the lavatory fixture.
